Decorating


Bay-Sports Mfg. Inc. uses latest cup ink holding tampo machines, doctored surface cleaning ink well tampo machines and silk screen machines. Silk screen machines are needed to decorate large surfaces.

Tampoflex Padprinter
Pad printer

PAD PRINTING PROCESS
Pad printing is an indirect photogravure process. An image is etched into a flat printing plate and ink is flooded and doctored across the surface leaving ink only in the etch. A silicon rubber pad then presses down onto the etched plate and picks up the ink. The image is now on the surface of the pad, which presses down onto the product to be printed and releases the ink as a clean film. Almost all materials can be printed and due to the flexibility of the pads uneven, curved and awkward shaped surfaces can be printed.



SCREEN PRINTING PROCESS
Screen printing is a printing technique that uses a woven mesh to support an ink-blocking stencil. The attached stencil forms open areas of mesh that transfer ink which can be pressed through the mesh as a sharp-edged image onto a substrate. A roller or squeegee is moved across the screen stencil, forcing or pumping ink pat the threads of the woven mesh in the open.

2 silk screen machines
2 silk screen machines

5 rotary type heat transfer printing machines
With these machines pictures can be transfered on objects made out of plastics. Such transfer is clean and environmentally safe which makes it attractive to factories concerned about a healthy work environment.  No chemical or liquid is needed in the process. Pad or silk screen printing systems are limited by the number of colours which have to be applied, hence, pictures with many colours can only be applied to objects with this transfer technique.

5 rotary type heat transfer printing machines
5 rotary type heat transfer printing machines

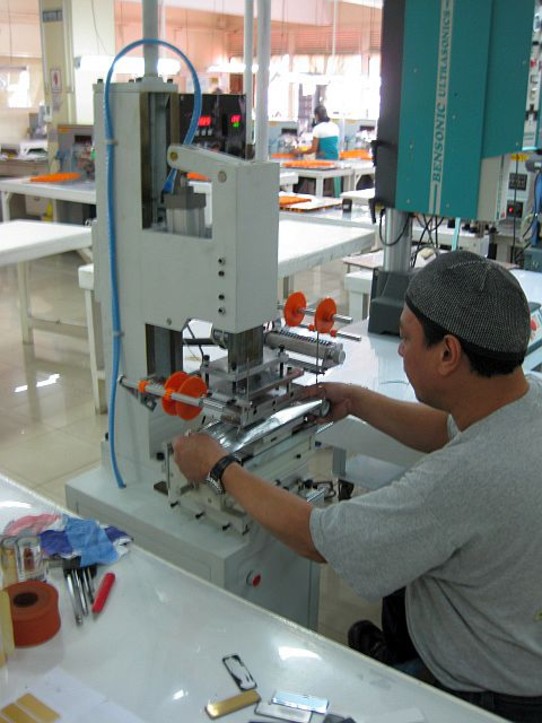

Hot stamping machine
Foil stamping works with a heated metal plate or die which has the reversed image which should be applied onto a material like paper, plastic, metal etc. It works with the right heat, pressure and time.
The foil runs between the plate and the material, the heated plate presses the foil onto the material so that the heat activates the adhesive. Under heat and pressure, the foil melts onto the surface of the material.
Hot stamping machine
Hot stamping machine

Manual spray
spray painting
spray painting

Labeling
Labeling
Labeling

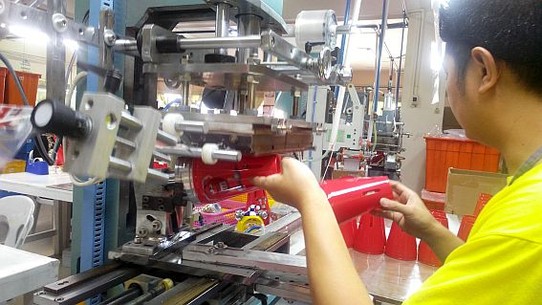

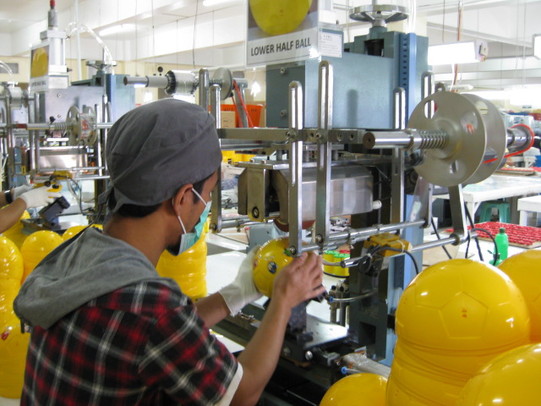

Pad printing
Pad printing
Pad printing
pad printing
pad printing
pad printing

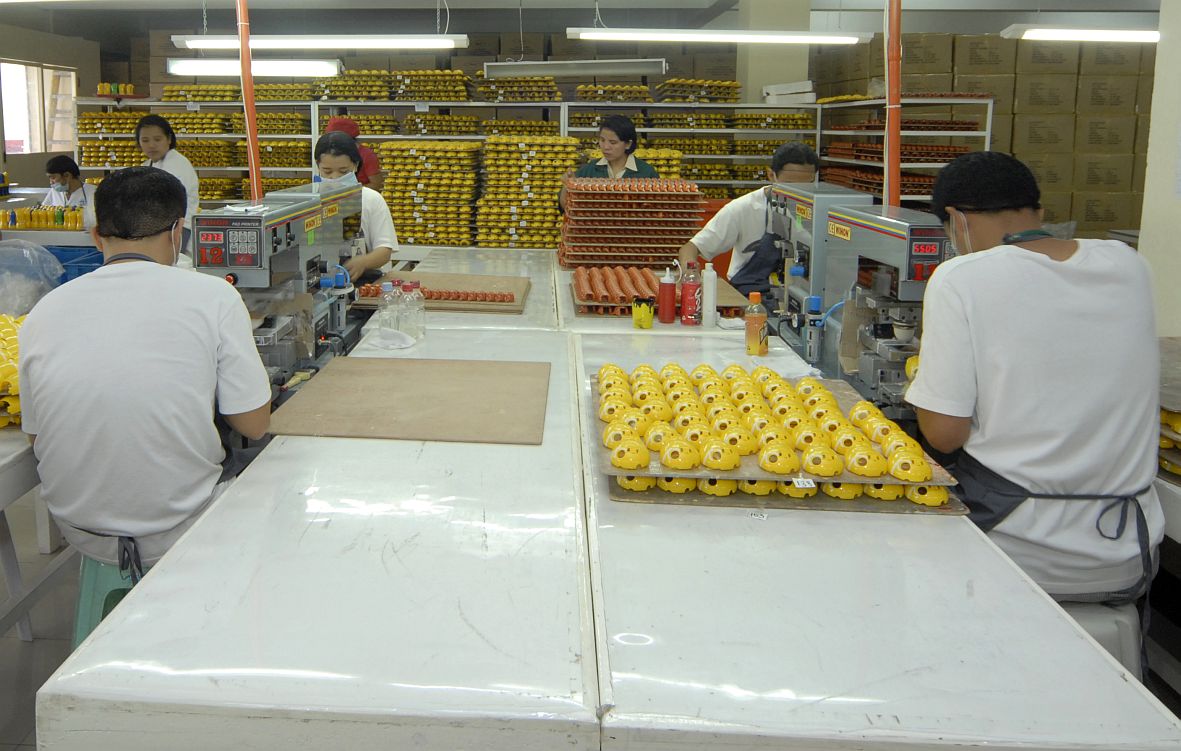

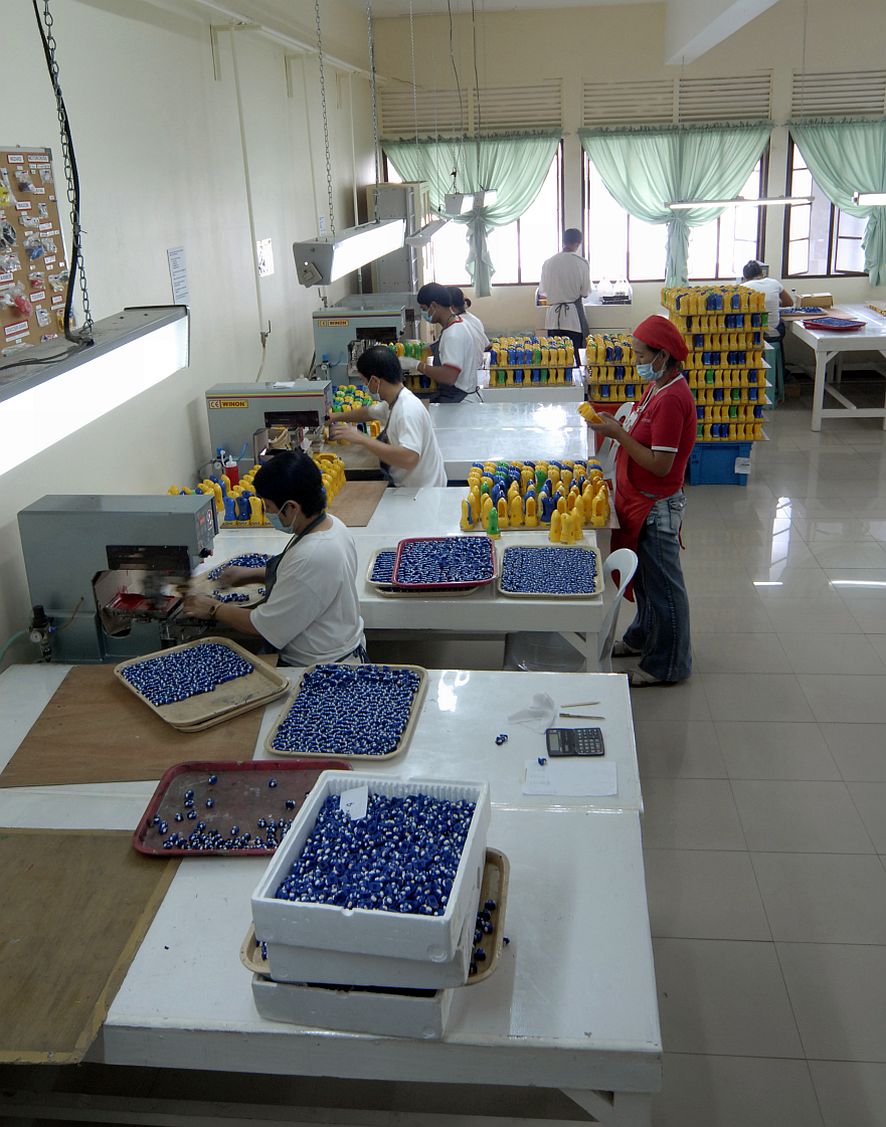

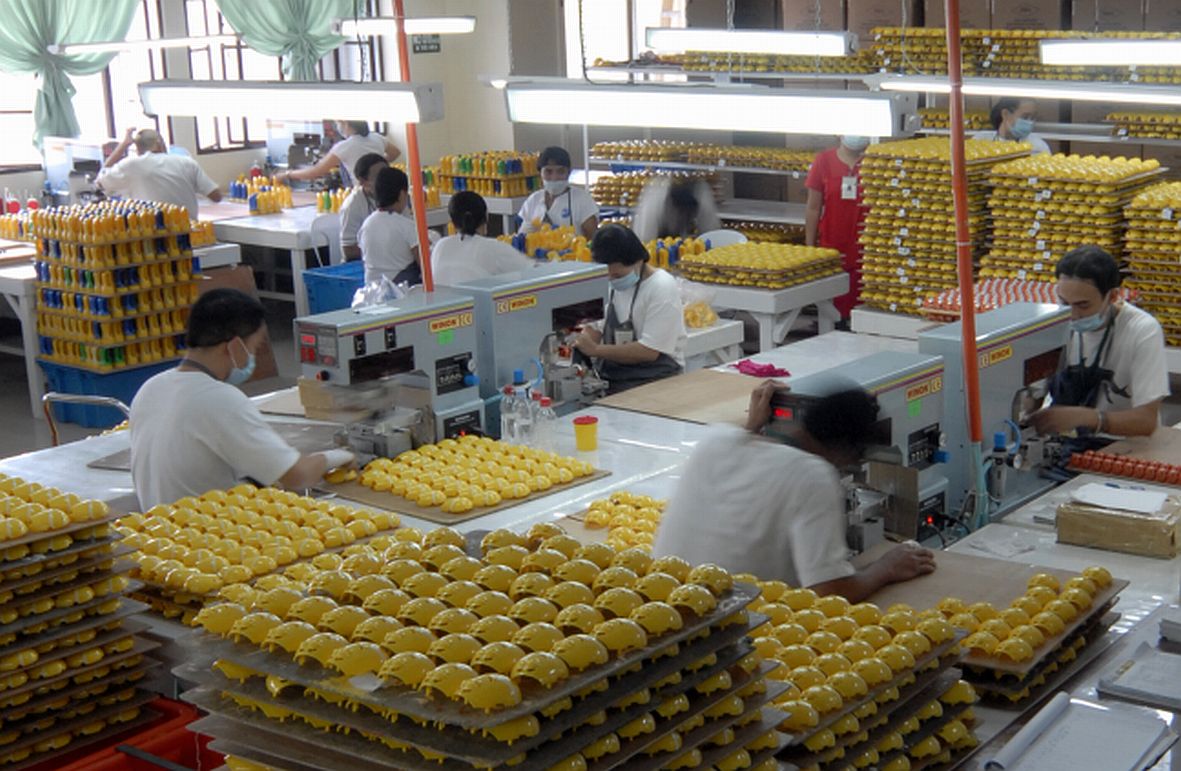

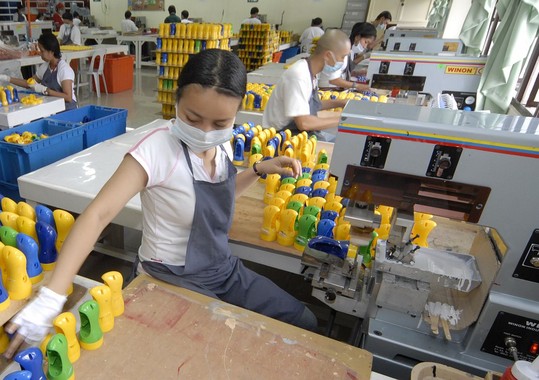

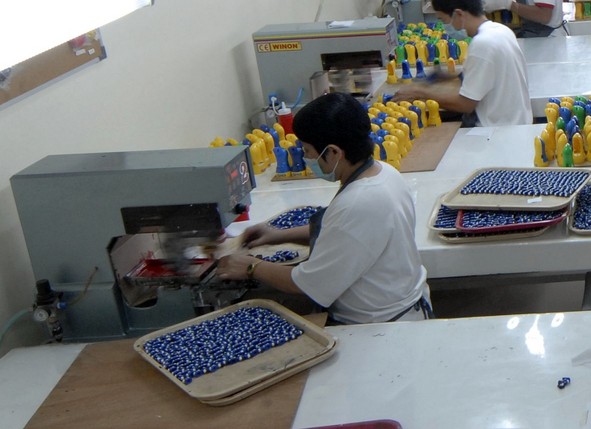

Our pad or tampo printing department works with 21 modern and automatic machines which allow a very precise and fast production.
20 spray booths are equipped with the most effective technology to protect the environment.
